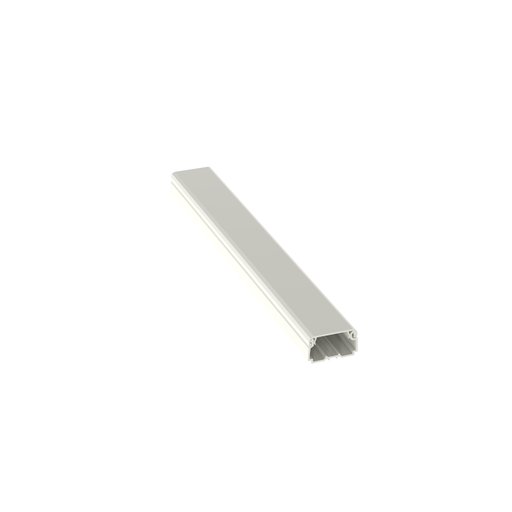

Panduit LDPH3WH6-A Surface Raceway, LDPH3 Power Rated, 2-piece Latching, 6 ft, White

Manufacturer: PANDUIT | Catalog # LDPH3WH6-A | Codale Part # 4410005
$5.21/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual
The LDPH3 power rated surface raceway is a two-piece latching raceway with cover suitable for applications up to 600 V. It features pre-punched mounting holes and factory-applied adhesive backing for fast mounting. It is 6 feet in length and is 0.75 inches wide by 0.41 inches deep. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It is white.

Technical Information

Applications
For Designed for Routing any Low Voltage Cable Along Smooth and Clean Perimeter Walls, Baseboards or Ceilings, Schools, Hospitals, Offices, Homes or Anywhere
Cover Type
2-Piece Hinge
Material
PVC
Mounting Type
Adhesive
Number of Channels
1
Type
Non-Metallic, Power Rated, Tamper-Resistant

Packaging

Pkg Qty
6

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Way

General Product Info

12-Digit UPC
074983344215
Color
White
Product UPC
07498334421
UNSPSC
39131710
Weight
0.3640 lb

Dimensions

Height
0.41 Inch
Length
72 Inch
Overall Length
6 ft
Width
19.6 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant.
Prop 65
  • No
